Control Valves and Cavitation Application Ratio Calculator

Inlet Pressure (p₁):

Outlet Pressure (p₀):

Vapor Pressure (pᵥ):

Application Ratio (AR):

1. What is Application Ratio (AR)?

Definition: Application Ratio (AR) is a measure of the pressure drop across a system relative to the pressure drop required to reach the vapor pressure of the fluid.

Purpose: It is used to evaluate the efficiency and performance of fluid systems, particularly in applications involving pumps and compressors.

2. How Does the Calculator Work?

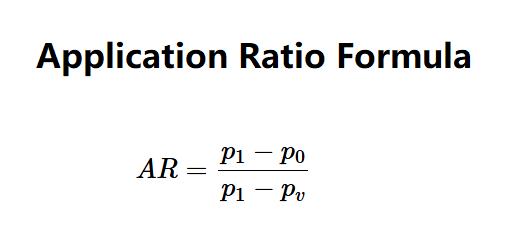

The Application Ratio is calculated using the formula:

\[ AR = \frac{p_1 - p_0}{p_1 - p_v} \]

Variables:

\( p_1 \): Inlet pressure (Pa).
\( p_0 \): Outlet pressure (Pa).
\( p_v \): Vapor pressure of the fluid (Pa).

Explanation: The formula calculates the ratio of the actual pressure drop to the maximum possible pressure drop before vaporization occurs.

3. Importance of Application Ratio

Details: This calculation is essential for designing and optimizing fluid systems, ensuring they operate efficiently without cavitation or other issues.

4. Using the Calculator

Tips: Enter the inlet pressure, outlet pressure, and vapor pressure. Click "Calculate" to get the Application Ratio.

Frequently Asked Questions (FAQ)

Q1: What happens if the inlet pressure equals the vapor pressure?
A: If \( p_1 = p_v \), the denominator becomes zero, and the Application Ratio is undefined. This indicates a potential risk of cavitation.

Q2: Can I use this calculator for any fluid?
A: Yes, this calculator is applicable to any fluid as long as the input values are provided correctly.

Q3: Why is the Application Ratio important?
A: The Application Ratio helps in assessing the performance and safety of fluid systems, particularly in avoiding cavitation.

Q4: What units should I use for pressure?
A: You can use any pressure unit (Pa, kPa, MPa, bar, psi). The calculator will automatically convert all values to a common unit (Pa) for calculation.

Q5: How accurate is this calculator?
A: The calculator provides accurate results based on the input values and formula. However, real-world conditions may introduce additional factors not accounted for here.
