Hydraulic Piston Force Calculator

Rod Diameter (d₁):

Piston Diameter (d₂):

Pressure (P₁):

Force (lb): Force (N): Force (kgf):

1. What is Hydraulic Piston Force?

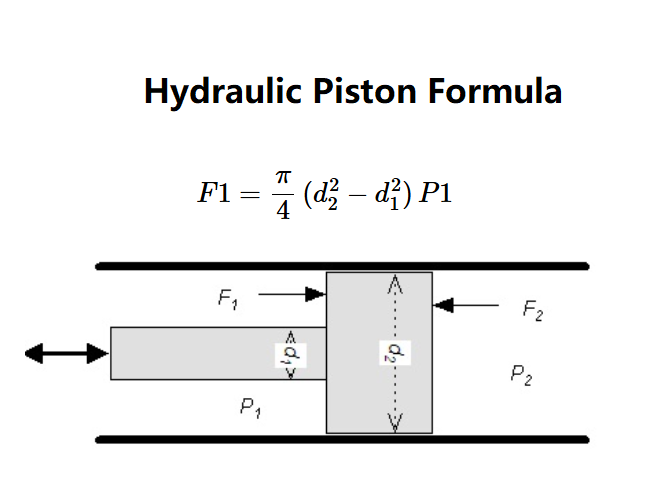

Definition: The force produced by a double acting hydraulic piston on the rod side is calculated using the formula:

\[ F1 = \frac{\pi}{4} \, (d_2^2 - d_1^2) \, P1 \]

Variables:

\( F1 \): Rod pull force (lb).
\( d1 \): Rod diameter (inches).
\( d2 \): Piston diameter (inches).
\( P1 \): Pressure in the cylinder (rod side) (psi).

Explanation: The formula calculates the force based on the piston and rod diameters and the pressure applied.

2. Importance of Hydraulic Piston Force Calculation

Details: This calculation is essential for designing hydraulic systems, ensuring that the system can generate the required force for various applications.

3. Using the Calculator

Tips: Enter the rod diameter, piston diameter, and pressure. Click "Calculate" to get the force in various units.

Frequently Asked Questions (FAQ)

Q1: What is the difference between rod diameter and piston diameter?
A: The rod diameter is the diameter of the rod extending from the piston, while the piston diameter is the diameter of the piston itself.

Q2: Can I use this calculator for any hydraulic system?
A: Yes, this calculator is applicable to any double acting hydraulic piston system as long as the input values are provided correctly.

Q3: Why is the force important?
A: The force is important because it determines the capability of the hydraulic system to perform work, such as lifting or moving loads.

Q4: What units should I use for pressure?
A: You can use any of the provided pressure units. The calculator will automatically convert all values to psi for calculation.

Q5: How accurate is this calculator?
A: The calculator provides accurate results based on the input values and formula. However, real-world conditions may introduce additional factors not accounted for here.
