Pulley Belt Length Calculator

1. What is Pulley Belt Length?

Definition: The pulley belt length is the total length of the belt required to connect two pulleys, calculated using the formula:

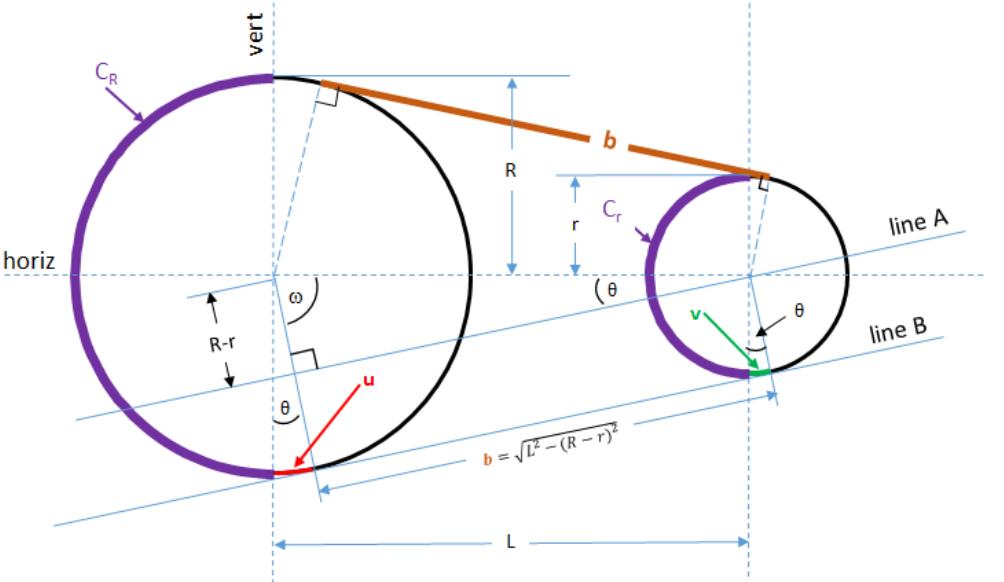

\[ \text{Belt Length} = \pi \cdot (R + r) + 2 \cdot a \cdot \sin\left(\frac{R - r}{L}\right) \cdot (R - r) + 2 \cdot \sqrt{L^2 - (R - r)^2} \]

Variables:

  • \( R \): Radius of the larger pulley (in inches).
  • \( r \): Radius of the smaller pulley (in inches).
  • \( L \): Axle separation (distance between the axes of the pulleys, in inches).
  • \( a \): Constant (assumed 1 in this calculator).
Explanation: This formula accounts for the circumference contribution of both pulleys and the straight segments of the belt, adjusted by the axle separation and radius difference.

2. Importance of Pulley Belt Length Calculation

Details: Accurately calculating the belt length ensures proper tension and alignment in pulley systems, which is critical for machinery efficiency and durability.

3. Using the Calculator

Tips: Enter the radii of the larger and smaller pulleys, and the axle separation with their respective units. Click "Calculate" to get the belt length in multiple units.

Frequently Asked Questions (FAQ)

Q1: What is the radius of a pulley?
A: The radius is the distance from the center of the pulley to its outer edge.

Q2: What is axle separation?
A: Axle separation is the distance between the centers of the two pulleys.

Q3: Why calculate belt length?
A: It ensures the belt fits correctly, maintaining proper tension and preventing slippage.

Q4: Can I use different units?
A: Yes, the calculator supports inches, centimeters, millimeters, feet, and yards, converting all inputs to inches for calculation.

Q5: How accurate is this calculator?
A: The calculator is accurate based on the formula and input values, though real-world factors like belt stretch may affect actual length.
