Square Thread Power Screws (Torque to Raise) Calculator

Lead (L):

Load (F):

Coefficient of Friction for Thread (μ):

Coefficient of Friction for Collar (μc):

Mean Collar Diameter (dc):

Mean Thread Diameter (dm):

Torque (N·m):

Torque (lb·ft):

Torque (kg·m):

1. What is Torque Required to Raise a Load?

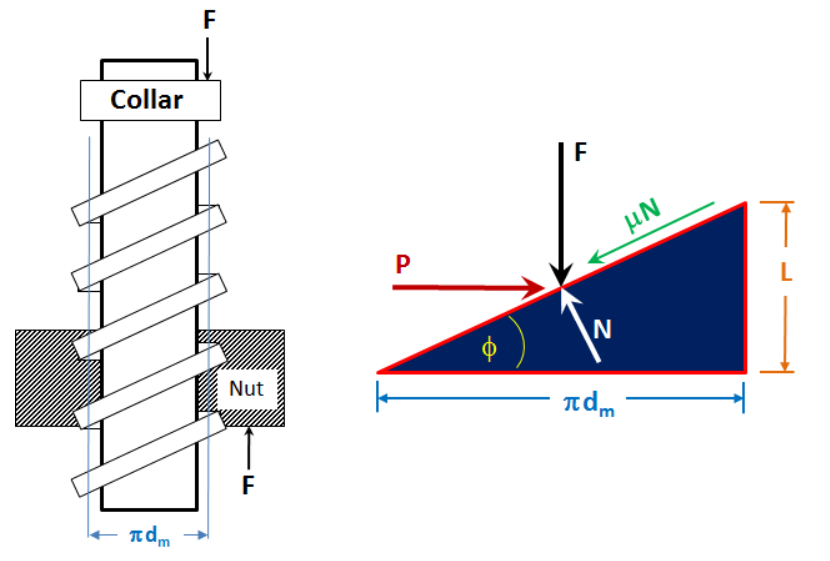

Definition: The torque required to raise a load using a square thread power screw is the rotational force needed to overcome the load and friction, calculated using the formula:

\[ T_R = \frac{F \cdot d_m}{2} \cdot \frac{L + \pi \cdot \mu \cdot d_m}{\pi \cdot d_m - \mu \cdot L} + \frac{F \cdot \mu_c \cdot d_c}{2} \]

Variables:

\( T_R \): Torque required to raise the load (in N·m).
\( F \): Load force (in N).
\( L \): Lead of the screw (in cm).
\( \mu \): Coefficient of friction for the thread (dimensionless).
\( \mu_c \): Coefficient of friction for the collar (dimensionless).
\( d_m \): Mean thread diameter (in cm).
\( d_c \): Mean collar diameter (in cm).

Explanation: This formula accounts for the torque needed to lift the load against gravity and friction in both the threads and the collar of the screw.

2. Importance of Torque Calculation in Power Screws

Details: Calculating the torque required to raise a load is crucial in mechanical engineering for designing power screws in machinery such as jacks, presses, and vices. It ensures the screw can handle the load without slipping or failing.

3. Using the Calculator

Tips: Enter the lead, load force, coefficients of friction, and mean diameters with their respective units. Click "Calculate" to get the torque in multiple units.

Frequently Asked Questions (FAQ)

Q1: What is a square thread power screw?
A: A square thread power screw is a type of screw with a square-shaped thread profile, used in machinery to convert rotational motion into linear motion, often in applications like jacks and presses.

Q2: What is the lead of a screw?
A: The lead (\( L \)) is the distance the screw advances linearly with one complete rotation.

Q3: Why calculate torque for a power screw?
A: It ensures the screw can handle the load and friction, preventing failure and ensuring efficient operation in devices like jacks, presses, and vices.

Q4: Can I use different units?
A: Yes, the calculator supports length units (cm, in, mm, ft, yd, m) for lead and diameters, and force units (N, kN, lb, kg) for the load.

Q5: How accurate is this calculator?
A: The calculator is accurate based on the formula and input values, though real-world factors like material variations and wear may affect actual torque requirements.
